    Thermal Fluid Chemistries Explained

    Dow Chemical provides two basic types of low-temperature thermal fluids with their DOWTHERM™ (ethylene glycol based) and DOWCAL™ (propylene glycol based) portfolio.  Both chemistries are well established as effective solutions for temperature control, but how do they differ and which solution is the right fluid for your requirement? This article aims to simplify & answer those questions to ensure proper thermal fluid seleciton.


Thermal Fluid Expertise - DOWCAL™ & DOWTHERM™


DOWCAL™ and DOWTHERM™ are the go-to solution for low-temperature heat transfer requirements, with more than 30 years’ worth of demonstrated success in HVAC systems, food processing facilities, and other equipment exposed to moderate temperatures (<350°F). There are slight differences in the chemical make-up of these products, but separate and individual handling & operating procedures are not specifically required.

There are three major factors that you should evaluate when deciding between a propylene glycol and an ethylene glycol solution:


    ChemPoint - Product ArticlesChemPoint - Product Articles

    Relative Toxicity

    Ethylene Glycol (EG) is rated as moderately toxic if ingested, with a lethal dose being approximately 100mL or 3 ounces.  In industrial settings where workers may be exposed to EG by inhalation, skin or eye contact – health concerns are relatively minor.

    Propylene Glycol (PG) exhibits low oral toxicity and has seen extended term use in food & pharma products. Industrial exposure is generally not a health concern.  Although these fluids differ slightly, it is recommended to treat both products with equal precautions, safe handling & processes.
    ChemPoint - Product ArticlesChemPoint - Product Articles

    Regulatory Impact

    Ethylene and Propylene glycol do not appear on the EPA list of “hazardous substances”.  However, DOWTHERM™ is subject to reporting requirements for the Superfund Amendments & Reauthorization Act (SARA) and the Comprehensive Environmental Response, Compensation & Liability Act (CERCLA) due to its acute oral toxicity and air pollutant potential.

    PG is considered GRAS (generally recognized as safe) by the FDA under 21 CFR 187.1666 and can be used in a wide array of food, beverage & pharmaceutical equipment.
    ChemPoint - Product ArticlesChemPoint - Product Articles

    Heat Transfer Efficiency

    PG is more viscous than EG, especially at very low temperatures.  Resulting in potential loss in efficiency for cooling applications.

    In order to best determine heat transfer efficiency in an air-cooled heat exchanger, you can use the following equation;
    When used at a 50% dilution in water (Table 1 below), a measureable difference in efficiency is seen between EG (4.7% Loss) and PG (11.7% loss) due to the heavier viscosity in the PG fluid.
Table 1: Heat Transfer Comparison (50% EG) with (50% PG)
    Temp °F
    Re (EG)
    Re (PG)
    hi (EG)
    hi (PG)

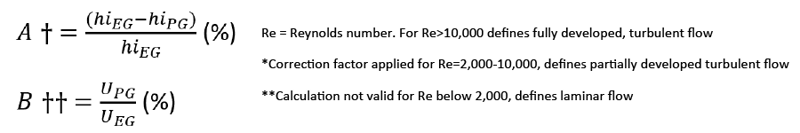

    A†
    U (EG)
    U (PG)
    B††
    170
    54,612
    45,564
    968
    855
    11.7
    18.69
    18.64
    99.7
    120
    31,554
    23,648
    739
    628
    15.0
    18.58
    18.49
    99.5
    70
    15,318
    8,983
    508
    356*
    29.9
    18.36
    18.09
    98.5
    25
    6,152
    2,478
    275*
    121*
    56.0
    17.82
    16.46
    92.4
    0
    3,054
    947
    151*
    --*
    --*
    16.92
    --**
    --
ChemPoint - Product ArticlesChemPoint - Product Articles

Table 2: Physical Properties Comparison EG and PG

    Ethylene Glycol (100%)
    Propylene Glycol (100%)
    Ethylene Glycol (50% Solution)
    Propylene Glycol (50% Solution)
    Molecular Weight
    62.1
    76.1
    --
    --
    Freeze Point
    8°F (-13°C)
    -71°F (-58°C) Tg
    -34°F (-36°C)
    -29°F (-33°C)
    Specific Gravity
    1.110
    1.033
    1.082
    1.050
    Density (lb/ft^3)
    69.12
    64.32
    67.05
    65.14
    Flash Point
    240°F (115°C)
    220°F (104°C)
    None
    None
    Boiling Point
    387°F (198°C)
    369°F (188°C)
    225°F (108°C)
    222°F (105°C)

Physical Properties Explained


    ChemPoint - Product ArticlesChemPoint - Product Articles

    Viscosity

    PG is more viscous than EG, this difference is especially noticeable at lower temperatures where viscosity increases. When operating at 170°F the viscosity difference between EG and PG is about 10% and generally unnoticeable.  At colder temperatures and start up conditions, PG will require significantly more energy.
    ChemPoint - Product ArticlesChemPoint - Product Articles

    Freeze Point

    Propylene Glycol has a higher molecular weight than EG and is less efficient in lowering the freezing point of water.  Approximately 2% higher concentration of PG is required to give equivalent protection from freeze as an EG based solution.
    ChemPoint - Product ArticlesChemPoint - Product Articles

    Specific Gravity

    The specific gravity of propylene glycol is very similar to that of water, and as a result it is impossible to identify specific gravity of PG solutions the same way as can be done for EG solutions.  At a high level, one gallon of PG will weigh less than EG.
    ChemPoint - Product ArticlesChemPoint - Product Articles

    Solubility Parameter

    PG has a greater affinity for oil-like materials than EG, this is reflected in the lower solubility parameter.  PG acts slightly better as a solvent than EG and can have a greater effect on some plastics/elastomers at higher temperatures.
