Scogin® Alginates for Sustainable Packaging


Sustainable Packaging Materials


Recently, a greater focus on sustainability within governmental regulations, consumer consciousness, and corporate standards have led to several advancements in the innovation and use of sustainable packaging. One of the main ways brand owners of packaged goods have shifted towards sustainability is by using packaging materials that are renewable and biodegradable. Paper and bio-based polymers are examples of materials used in packaging to replace plastic, metal, or glass.

Bio-based polymers are increasingly being evaluated for their use in creating bioplastics that maintain the same barrier functionalities that synthetic plastic films have, such that they can replace them. Paper has long been used as a packaging material, but paper sizing and barrier coatings must be applied to make it a viable material in certain applications, such as preserving the freshness of foods and preventing permeation or absorption of moisture, oil, and grease. Alginates serve as an ideal biomaterial to provide the perfect mix of sustainability, biodegradability, and functionality to facilitate the creation of sustainable packaging through bioplastic formation, paper sizing, or barrier coating operations.

Scogin® Alginates


Scogin® alginates are biopolymers derived from brown seaweed sustainably harvested from the Norwegian coastline. They are produced by extracting alginic acid from seaweed and adding sodium carbonate to create sodium alginates:



Seaweed Raw Material ▷ Washing/Grinding ▷ Extraction ▷ Screening/Filtering ▷ Precipitation ▷ Alginic Acid ▷ Sodium Alginate

Chemically, Scogin® is composed of two monomers: (1-4)-linked ß-D-mannuronate, also known as the M monomer, and α-L-guluronate, also known as the G monomer.

scoginM.png scoginG.png

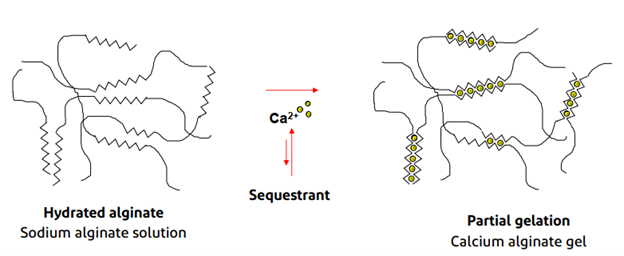

The polysaccharides formed from these monomers have differing proportions of M and G sequences, called blocks. The G-blocks provide sodium alginate gelling capabilities when exposed to calcium ions in water. Unlike other hydrocolloids that form gels and require heat to induce gelation, alginates will undergo gelation in cold water, providing an easier mechanism for creating gels. The M-G block ratio within the alginate ultimately determines gel strength, with alginates containing higher G-block content forming harder gels. The visualization of the mechanism in which gelation occurs is detailed below, referred to as the egg-box model.



Gelation is one of the key properties of alginates in the context of forming bio-based plastic films. When alginates are not exposed to calcium, however, they can serve as rheology modifiers and film formers. These properties make the alginates useful for paper sizing and barrier coating applications.

Scogin® Alginates in Packaging Applications


When Scogin® alginates are dispersed in water, they serve as excellent film formers and rheology modifiers. Both paper sizing and barrier coating applications rely on these properties to reduce the absorption or permeation of fluids.

Paper Sizing

Unsized paper or paper sized to an insufficient degree is not an ideal substrate for printing onto packages. This is because paper is naturally porous. In the case of paper sizing, Scogin® alginates create a film that covers and fills voids to reduce porosity near the paper’s surface. This prevents the absorption of ink systems too deeply into the paper, which would cause a loss in image distinctness through blotting and potential color mixing.

As a related note, Scogin® can also be used to modify rheology and improve the stability and homogeneity of ink systems. Therefore, Scogin® has utility in both the printing ink and the paper substrate it is applied to.

Barrier Coatings

Porosity also poses an issue for paper when it comes to stains from grease and oil in foods. When DuPont alginates are applied as a barrier coating onto paper, they improve the grease and oil resistance of paper. This is due to the high degree of hydrophilicity of the alginate polysaccharide.

As described in the paper sizing application, films made by DuPont's alginates also reduce surface porosity on paper; this allows for a reduction in the water vapor transmission rate, which is important for protecting the freshness of food when the barrier-coated paper is used in pouch applications.

In both the paper sizing and barrier coating applications, the rheology modifying properties of DuPont's alginates allows films to be formed that have better leveling properties to reduce surface defects and improve coverage. This maximizes the efficacy of inks, paper sizing, and barrier coatings. Scogin® alginates, like other DuPont alginates, are biodegradable and have food contact approvals, making them an ideal choice as many food-based paper packaging producers aim to make their packaging more sustainable.

Bioplastics

As mentioned, Scogin® can also be used to create bioplastics that create packaging films. When Scogin® alginates are introduced to calcium ions in water, G-blocks within the alginate polysaccharide instantly form ionic bonds that induce gelation. The gelling process also cross-links the alginate biopolymers to create castable thin films. When these gel films are dried, they can serve as biodegradable films that may be further modified in terms of performance to replace traditional plastic films made using synthetic polymers.  bag.jpg


How to Use Scogin®


The three available grades of Scogin® alginates are listed below with specifications.

Grade Viscosity (1% solution, cP) Suggested use level % Mesh
Scogin® IN2420 15–25 0.1–1.0 18
Scogin® LDH 50–70 0.1–1.0 25
Scogin® MV 350–500 0.1–1.0 18

If the application for Scogin® pertains to paper sizing or barrier coatings, the grade selection should mainly be based on viscosity, as coating methods vary in terms of the specific viscosity range required to apply desired coat weights. As a separate consideration, coating solutions with higher viscosities tend to have better holdout properties on paper, which may be useful in cases where the coating paper has very high porosity.
If Scogin® alginates are to be used for bioplastic applications, the following information can be used to select a sequestrant and calcium source for gelation, depending on solution pH and desired gel properties:



Dispersion equipment is required to prepare solutions with Scogin® alginates. Scogin® should be pre-blended with any other dry components that may be added into formulations prior to mixing at high speed. Scogin® grades with finer mesh sizes tend to hydrate quicker but more shear is required to avoid lumping.

Summary


Scogin® alginates are sustainably sourced biopolymers derived from brown seaweed. They, alongside other DuPont alginates, provide the necessary functionality to create both sustainable and high-performing food packaging materials. As natural film formers, rheology modifiers, and gelling agents, Scogin® has excellent utility in paper sizing, barrier coating, and bioplastic films. Since the biopolymers of Scogin® and other DuPont alginates are also sustainably sourced, biodegradable, safe, and have food contact approvals, they perfectly coincide with the aims of sustainable food packaging manufacturers. ChemPoint is here to answer questions you may have about DuPont alginates for your packaging applications and help you obtain a sample. Click below to take your next steps.
